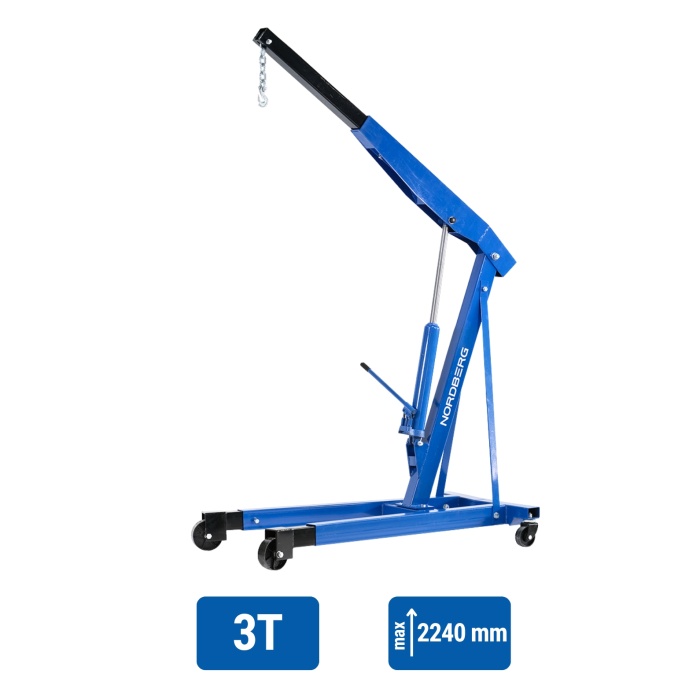

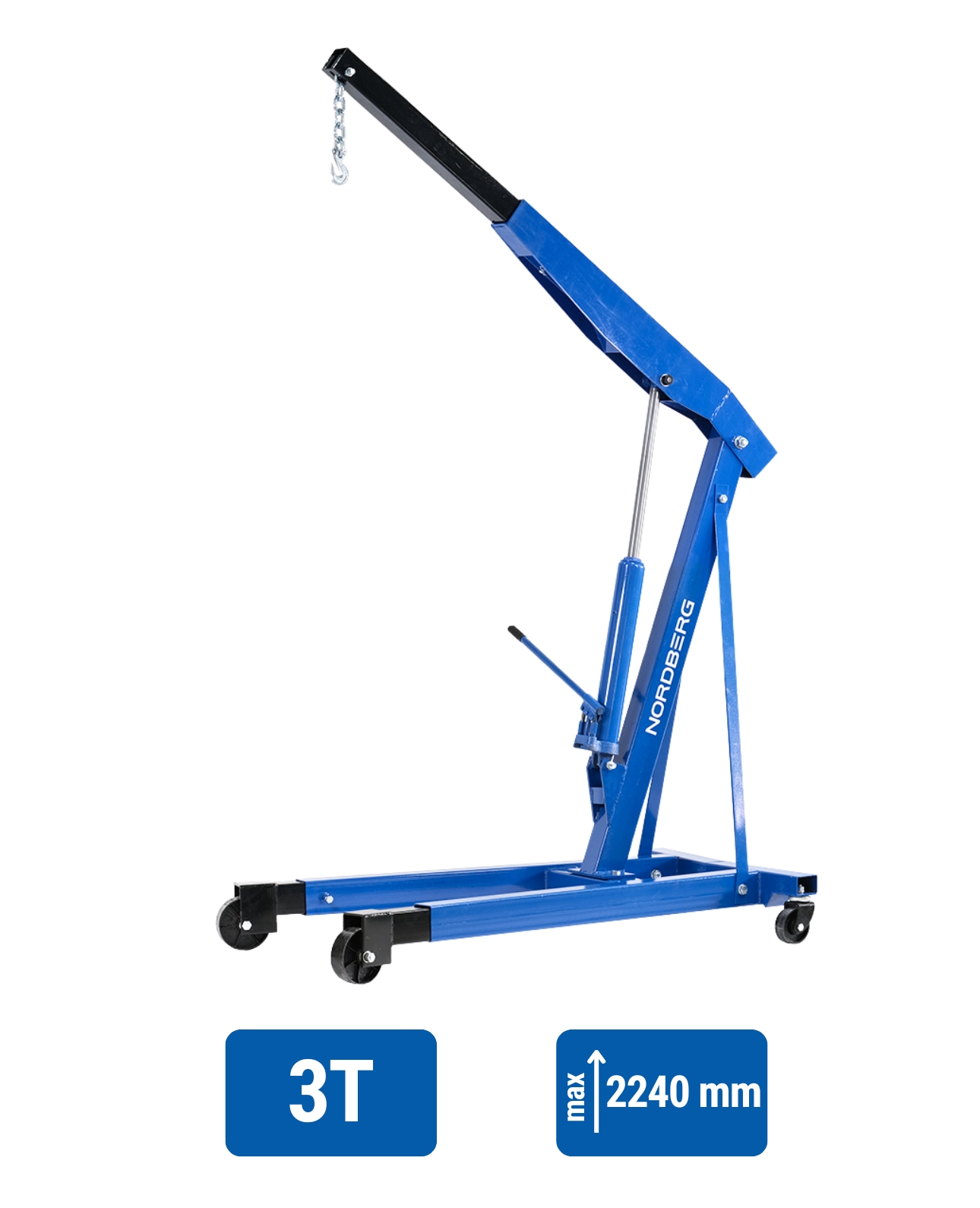

3 ton Engine Crane Dual Piston NORDBERG N3730

SKU

N3730

AED 1,680

39 in stock

Specification

Weight 117.5 kg
Dimensions 1475 × 1050 × 1500 mm
Brand

SKU

N3730

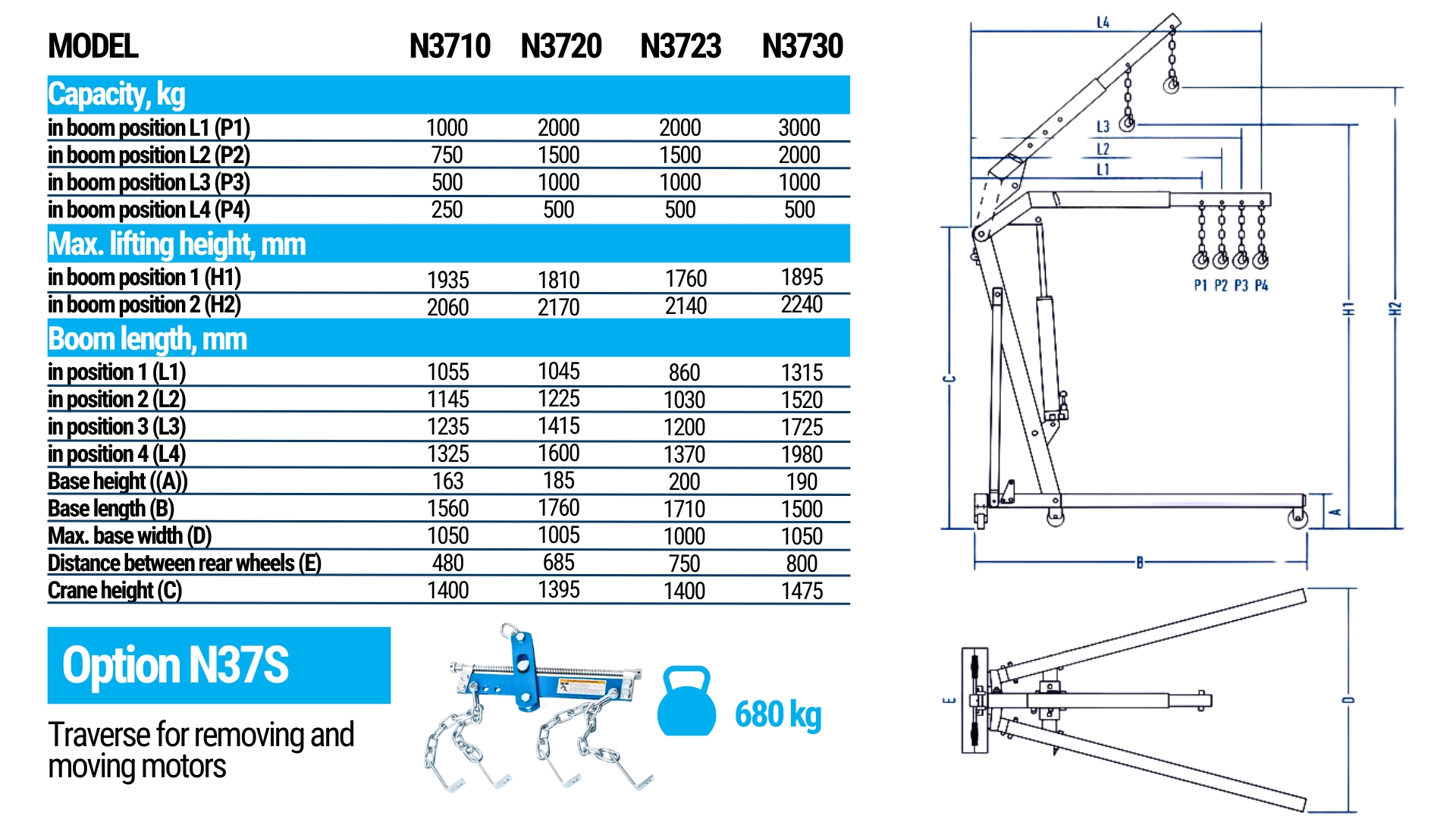

Capacity

3 ton

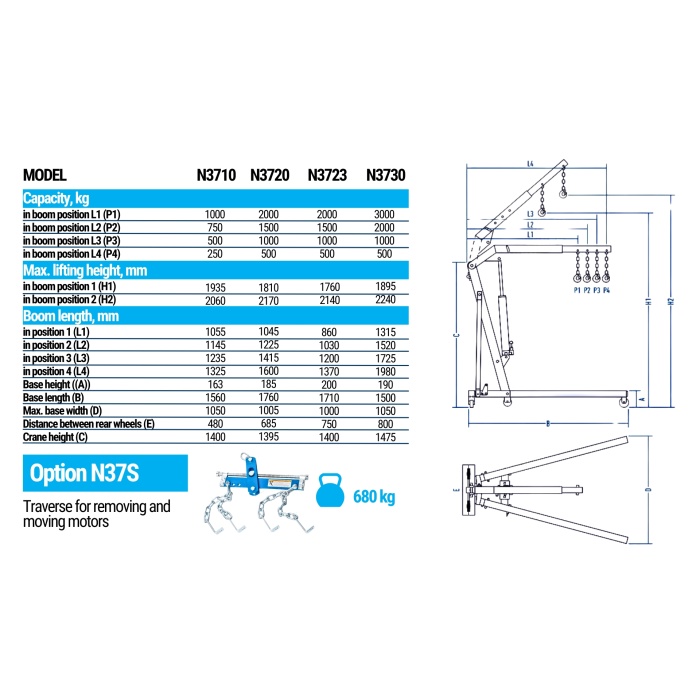

Height base (A)

190 mm

Lifting capacity at boom position 4 (P4)

750 kg

Max base width (D)

860 mm

Distance between universal wheels (E)

790 mm

Lifting capacity at boom position 1 (P1)

3,000 kg

Lifting capacity at boom position 2 (P2)

2,250 kg

Lifting capacity at boom position 3 (P3)

1,500 kg

Max lifting height in boom position 1 (H1)

1,800 mm

Max lifting height in boom position 4 (H2)

2,150 mm

Boom length in position 1 (L1)

1,240 mm

Boom length in position 2 (L2)

1,450 mm

Boom length in position 3 (L3)

1,660 mm

Boom length in position 4 (L4)

1,870 mm

Base length (B)

1,580 mm

Crane height (C)

1,540 mm

Package size

2 Boxes: 1450x340x210mm 88 kg; 1350x820x100mm 29,5 kg

Description

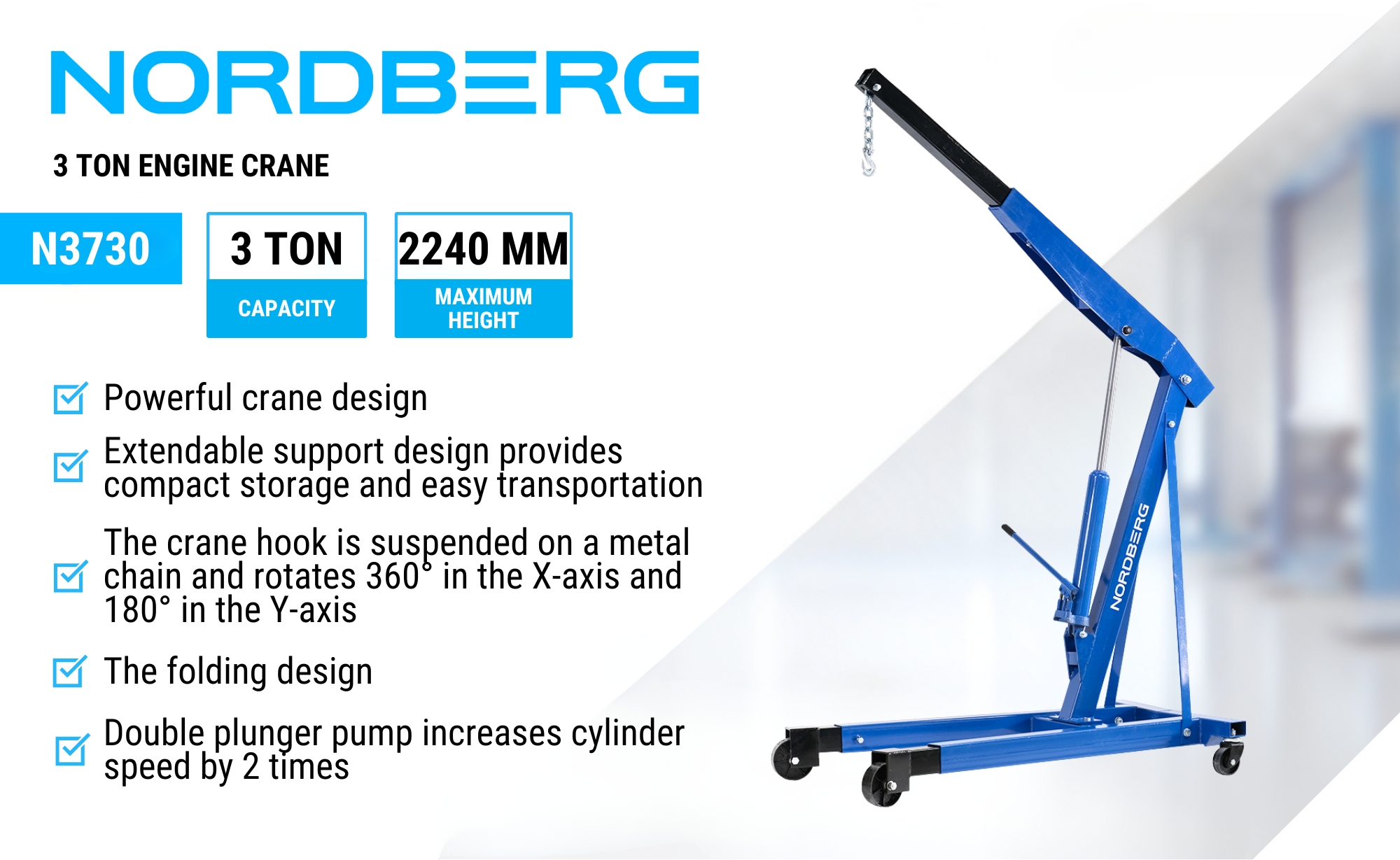

3 ton Engine Crane Dual Piston NORDBERG N3730

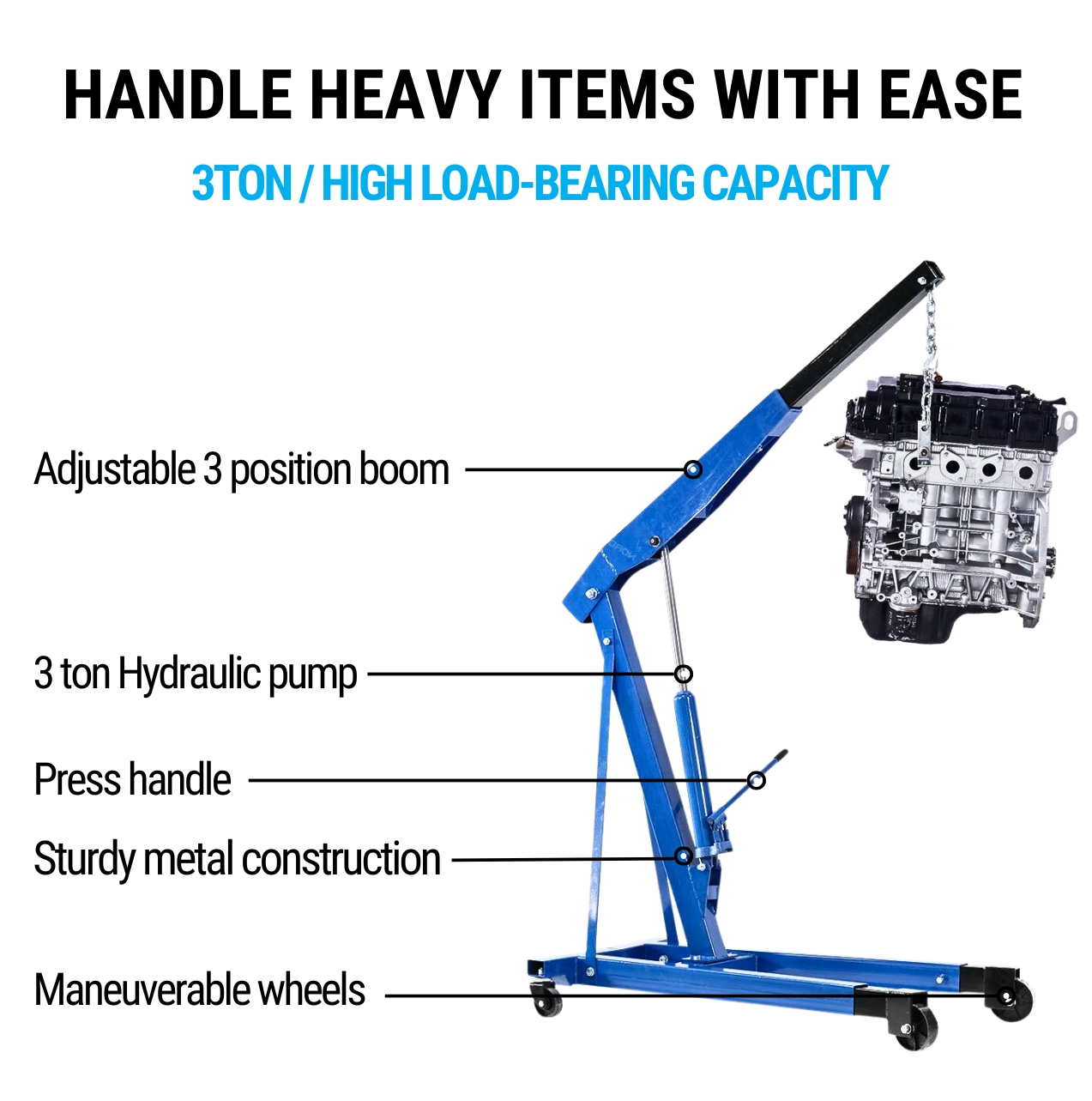

Hydraulic double plunger crane NORDBERG N3730 is a professional lifting equipment for use in service stations, workshops and production plants.

Functional

  • Designed for lifting and moving automotive components, units and other loads weighing up to 3 tons. Lifting and lowering of loads is performed by means of a hydraulic cylinder with manual drive.

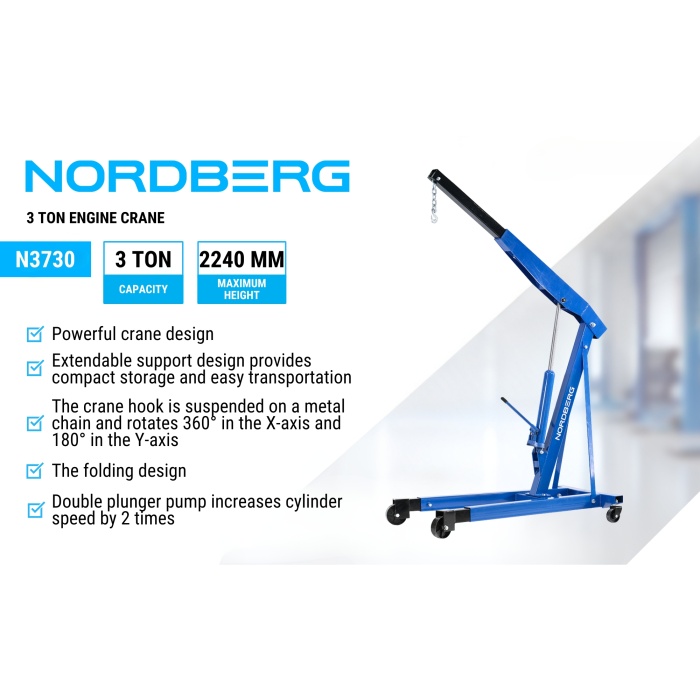

Advantages

  • Powerful crane structure is designed with a large safety margin, structural elements are made of thick-walled metal
  • Load capacity from 750 kg to 3 tons

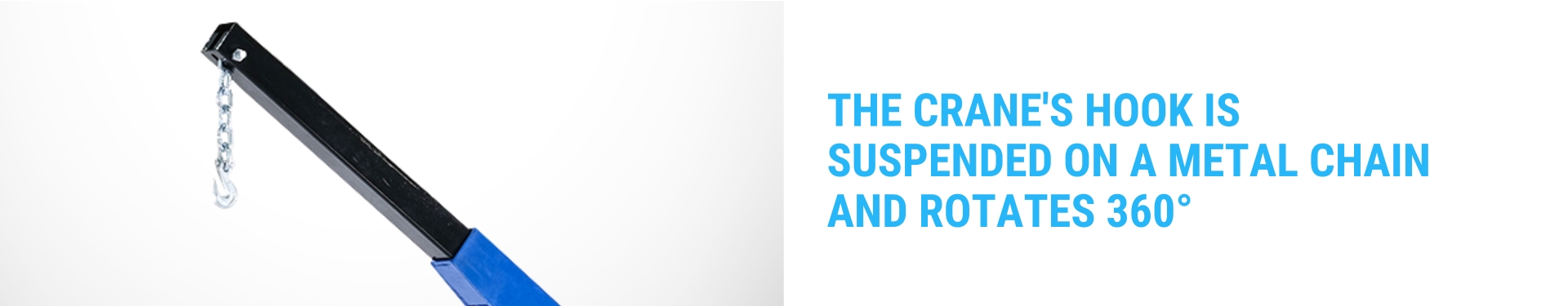

  • The crane hook is suspended on a metal chain and rotates 360° in the X-axis and 180° in the Y-axis

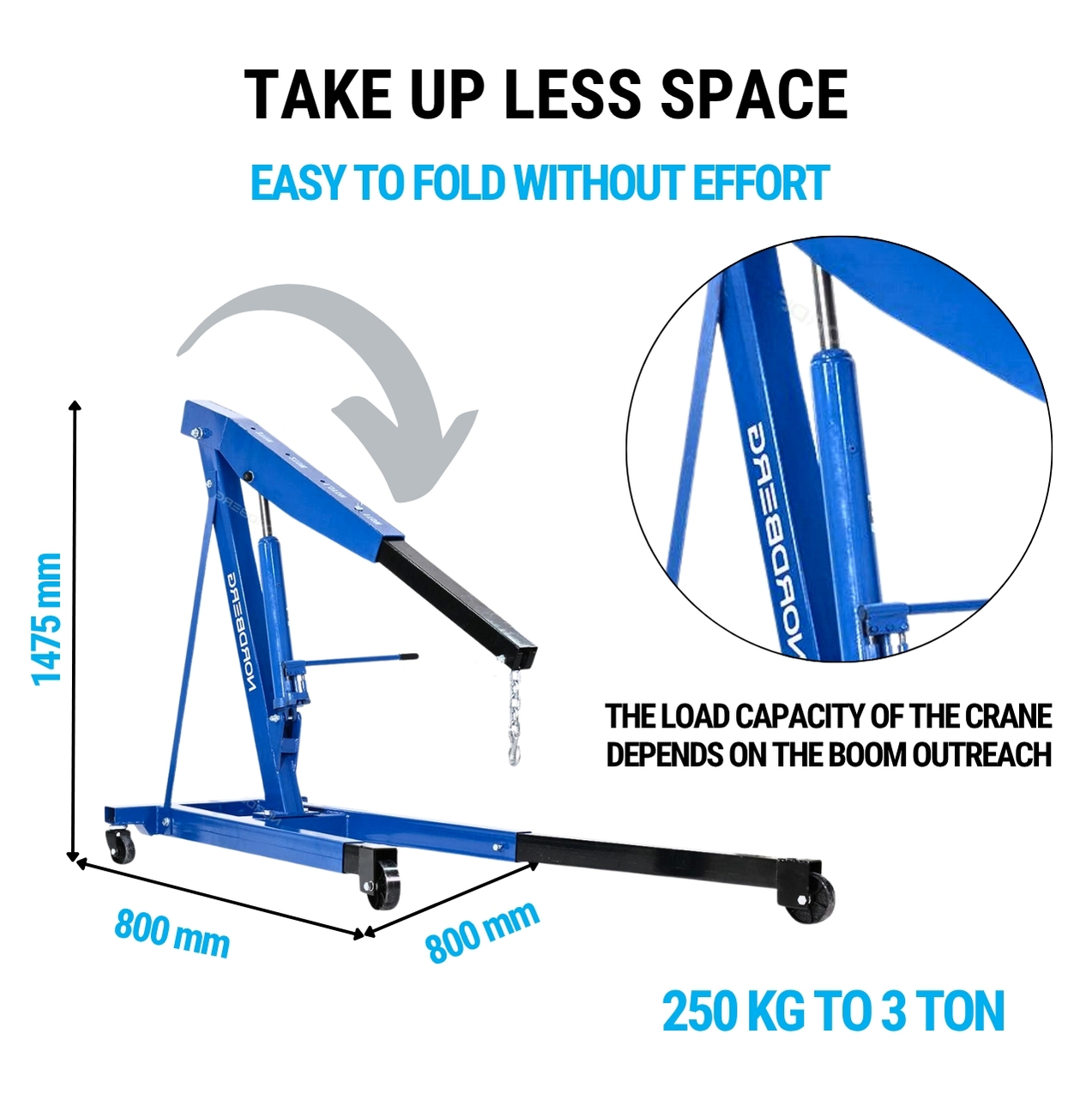

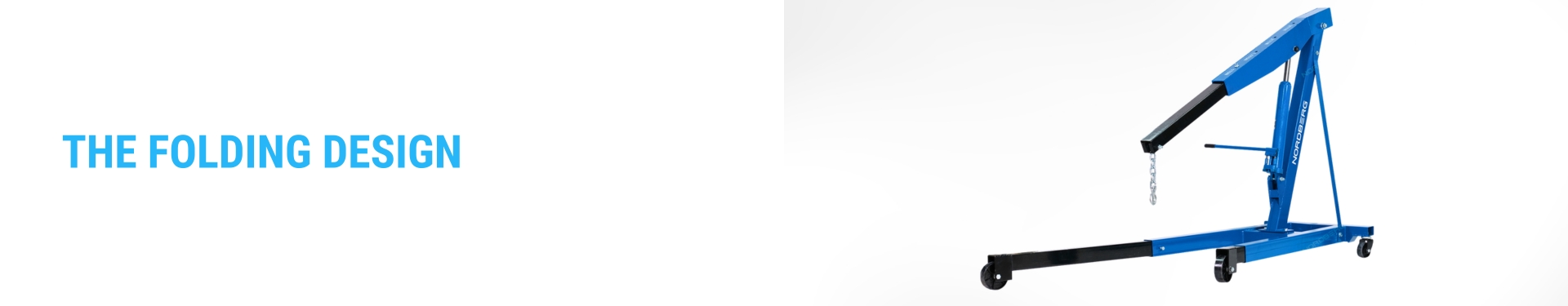

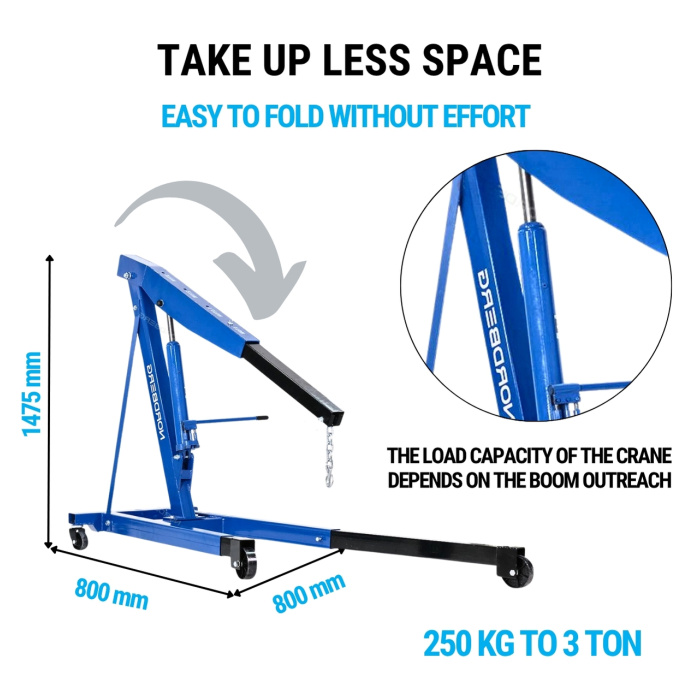

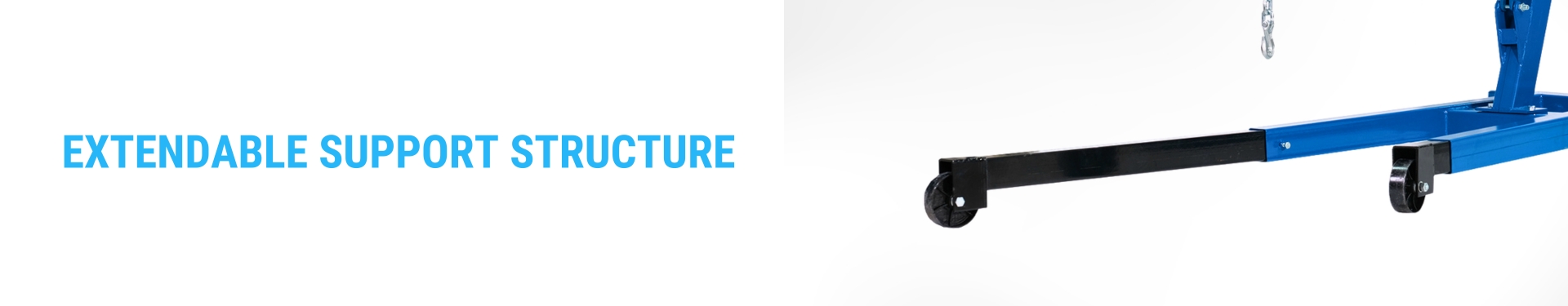

  • The retractable support design provides compact storage and easy transportation to the job site

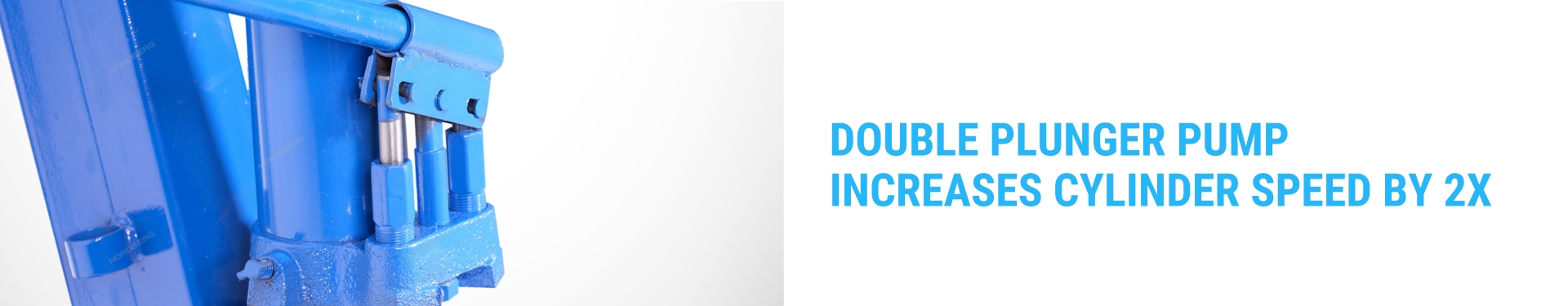

  • Double plunger pump increases cylinder speed by 2 times. Oil supply to the hydraulic cylinder is realized with both upward and downward stroke of the handle, unlike conventional pumps, where the working stroke is only downward

Ease of use

  • The hydraulic system ensures smooth and comfortable crane operation and safe operation

The NORDBERG N3730 hydraulic reinforced double-sided pump gooseneck crane is an indispensable lifting equipment for quality service of cars and trucks in service stations, service stations and garages.
