1 ton Engine Crane NORDBERG N3710

SKUN3710

AED 875

40 in stock

Specification

Weight69 kg
BrandNORDBERG
SKUN3710
Capacity1 ton
Load capacity in boom position 2 (P2), kg750
Lifting capacity in boom position 3 (P3), kg500
Lifting capacity in boom position 4 (P4), kg250
Wheel spacing (E), mm480
Lifting capacity in boom position 1 (P1), kg1000
Max. lifting height, in boom position 1 (H1), mm1935
Max. lifting height, in boom position 4 (H2), mm1950
Boom length in position 1 (L1), mm1055
Boom length in position 2 (L2), mm1145
Arrow length in position 3 (L3), mm1235
Arrow length in position 4 (L4), mm1325
Base length (B), mm1560
Max. base width (D), mm1050
Height of crane (C), mm1400
Package size1 Box: 1420x460x190mm 69 kg

Description

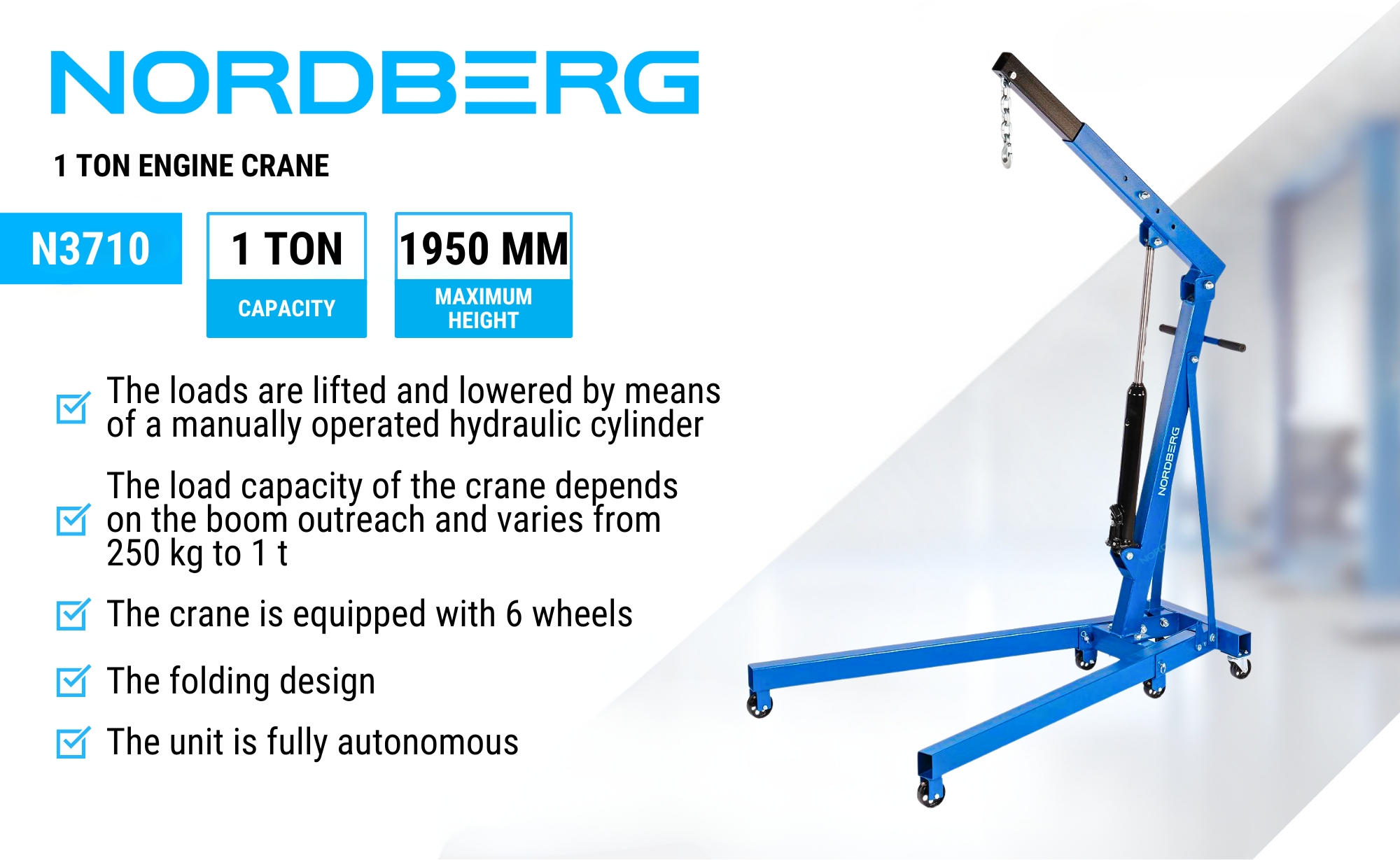

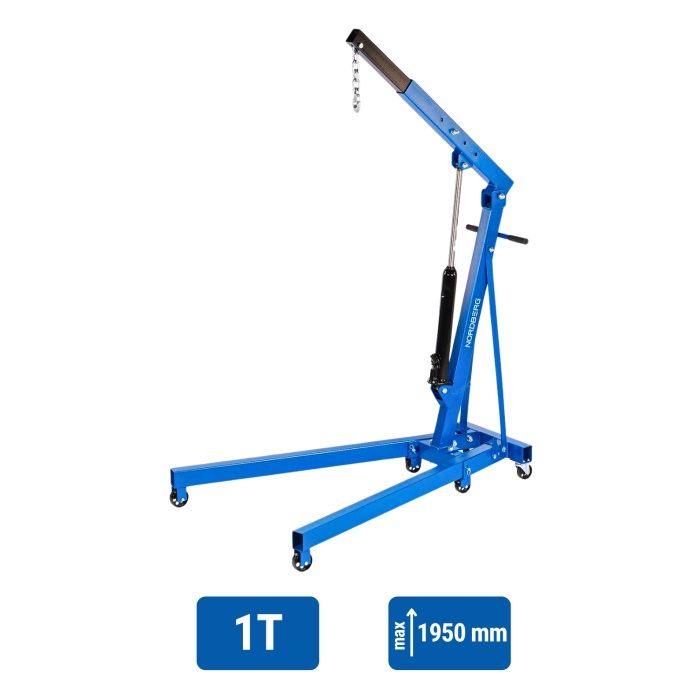

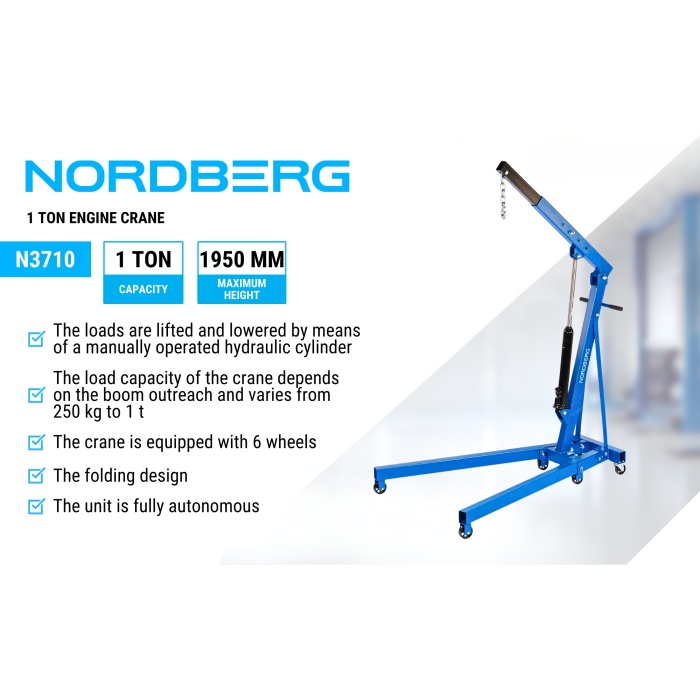

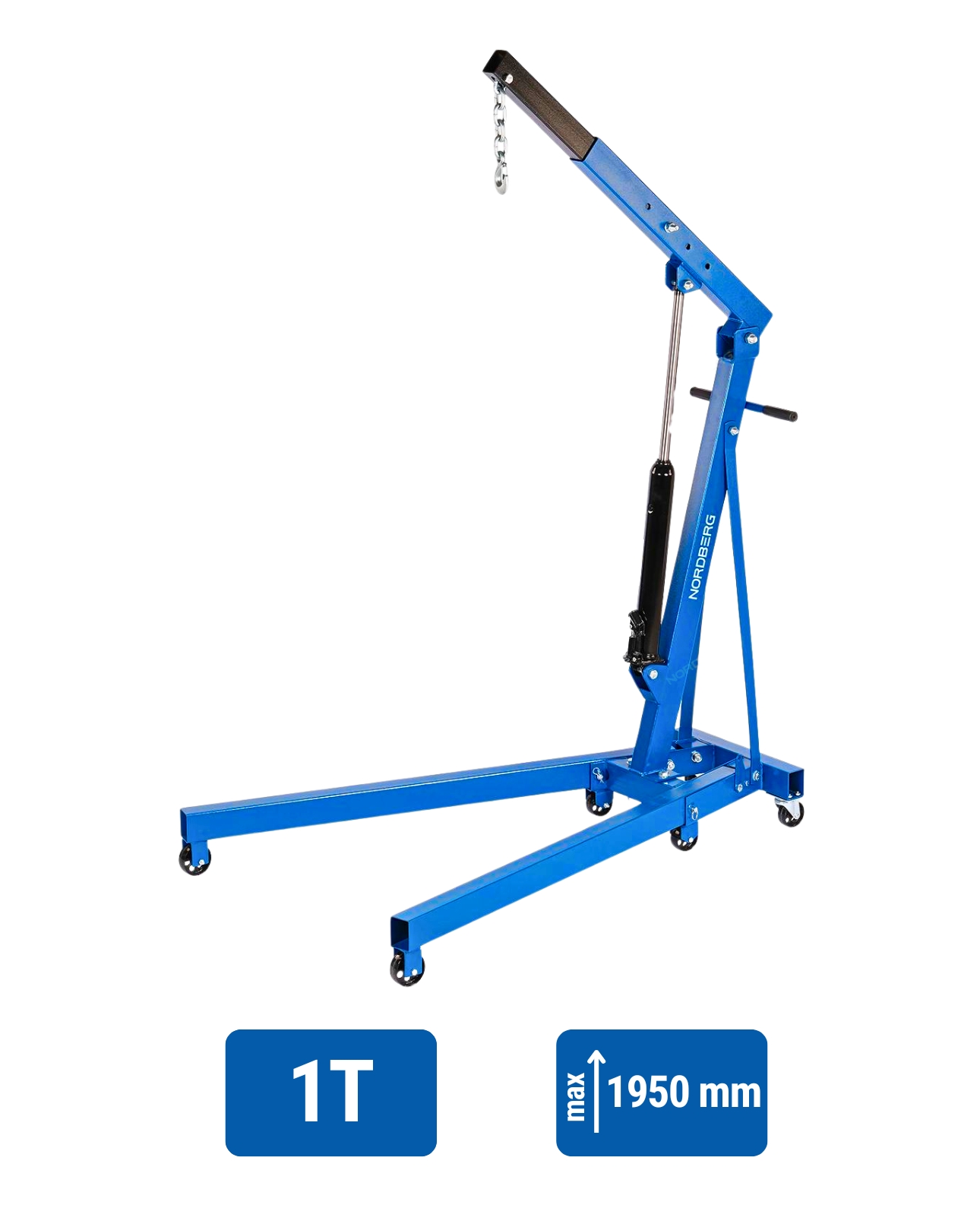

1 ton Engine Crane NORDBERG N3710

The N3710 hydraulic folding crane is designed for lifting and moving automotive components, units and other loads weighing up to 1 ton.

Advantages

  • It can be used at service stations, car repair shops and other production enterprises.

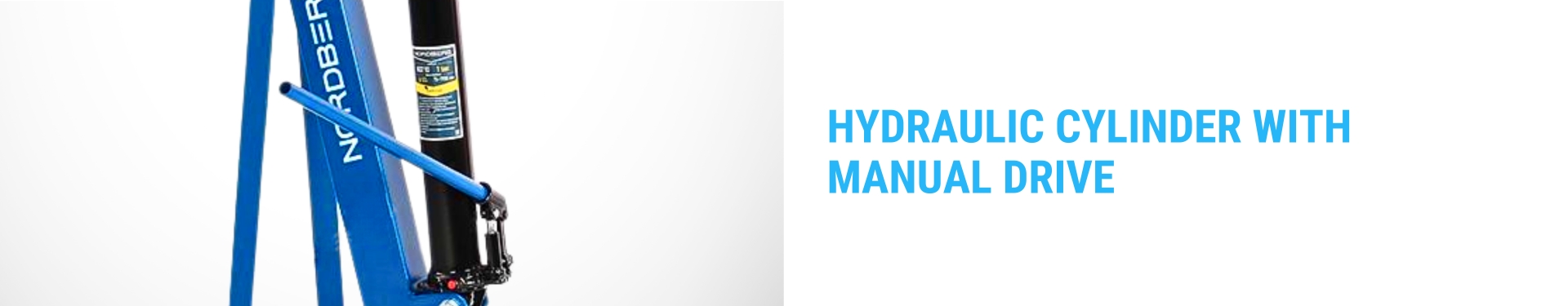

  • Lifting and lowering of loads is carried out by means of a hydraulic cylinder with manual drive.

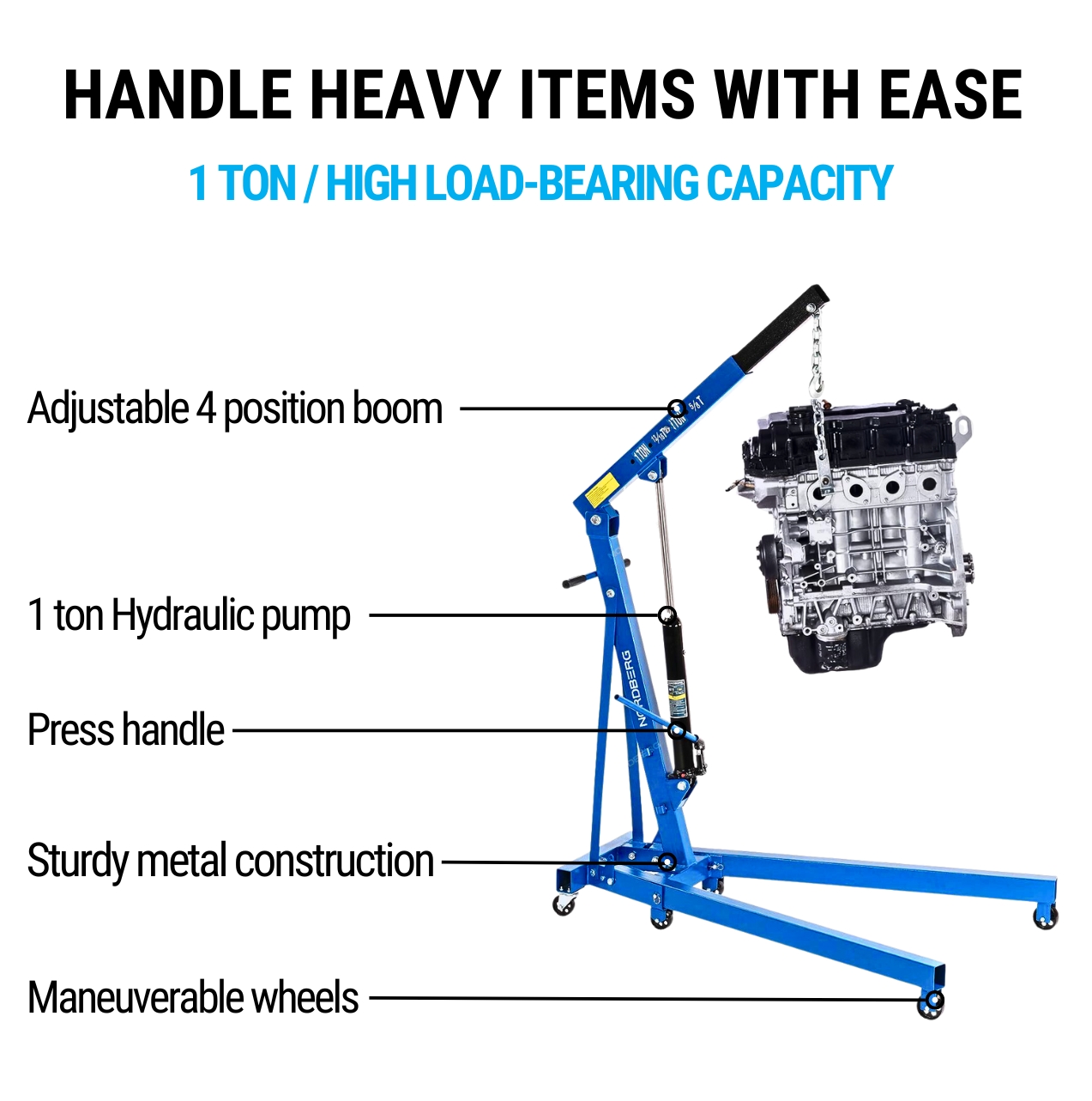

  • The load capacity of the crane depends on the outreach of the boom and varies from 250 kg to 1 ton.

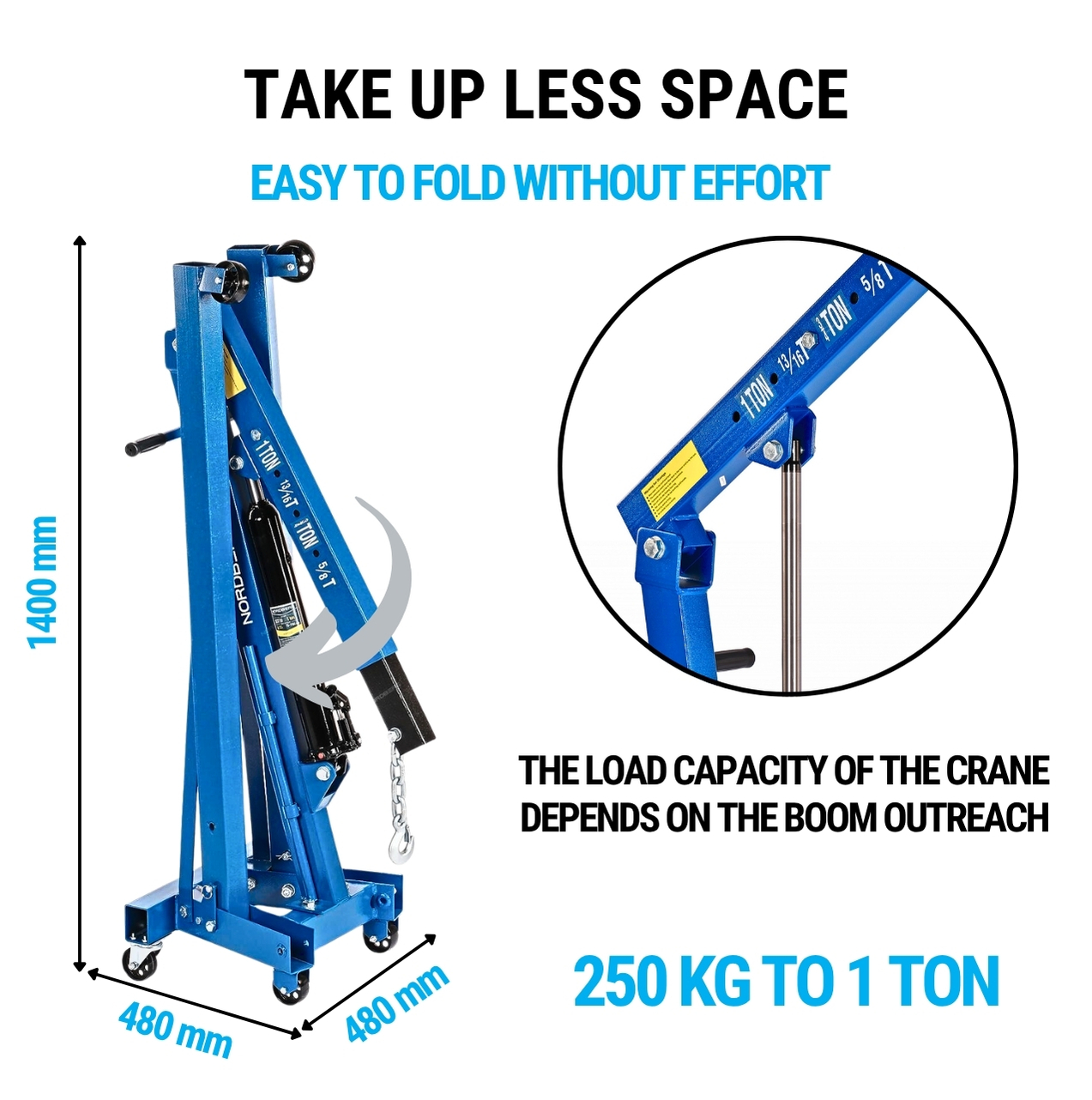

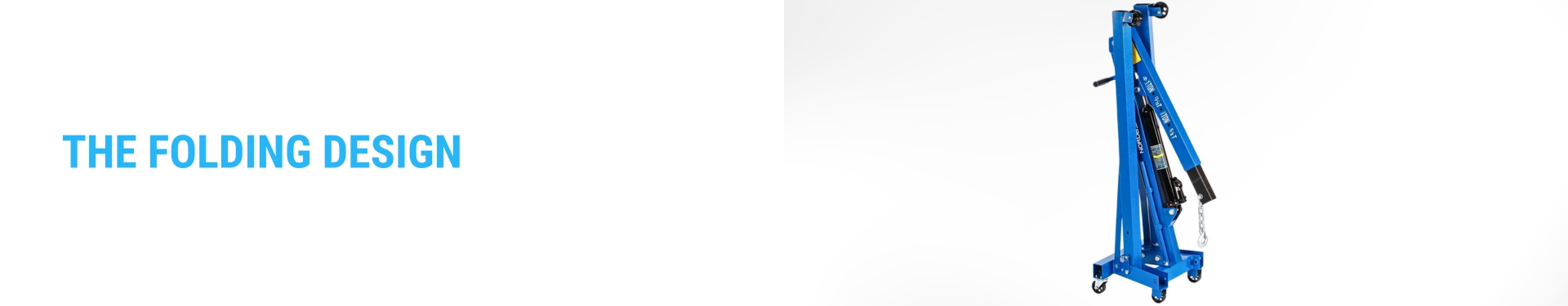

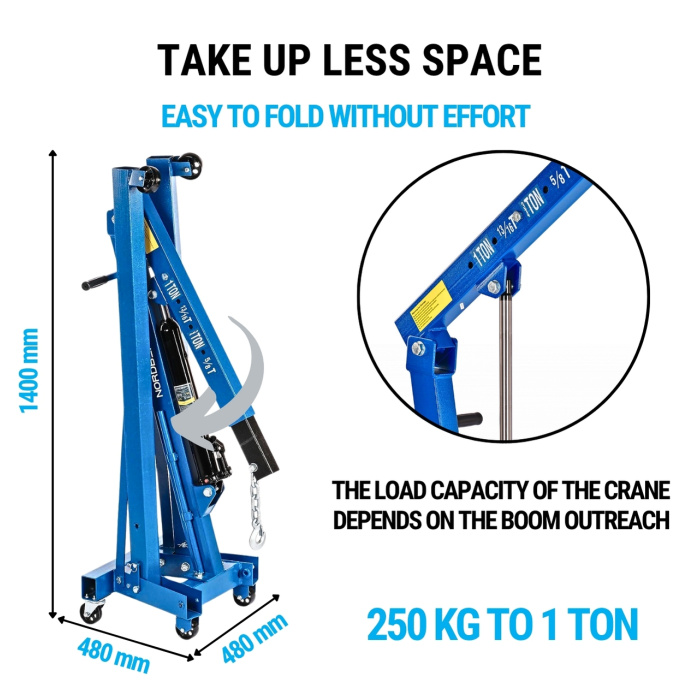

  • The folding design of the outriggers allows for compact storage and easy transport to the working area.

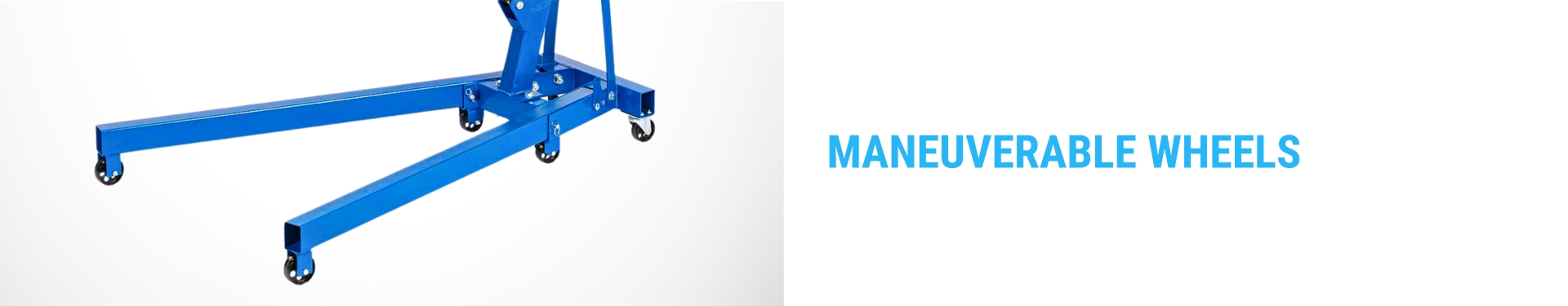

  • The crane is equipped with 6 wheels, which give good stability both when working and when folded.
  • The device is fully autonomous and does not require any additional attachments.

Optional NORDBERG N37S traverse for removal and relocation of motors
