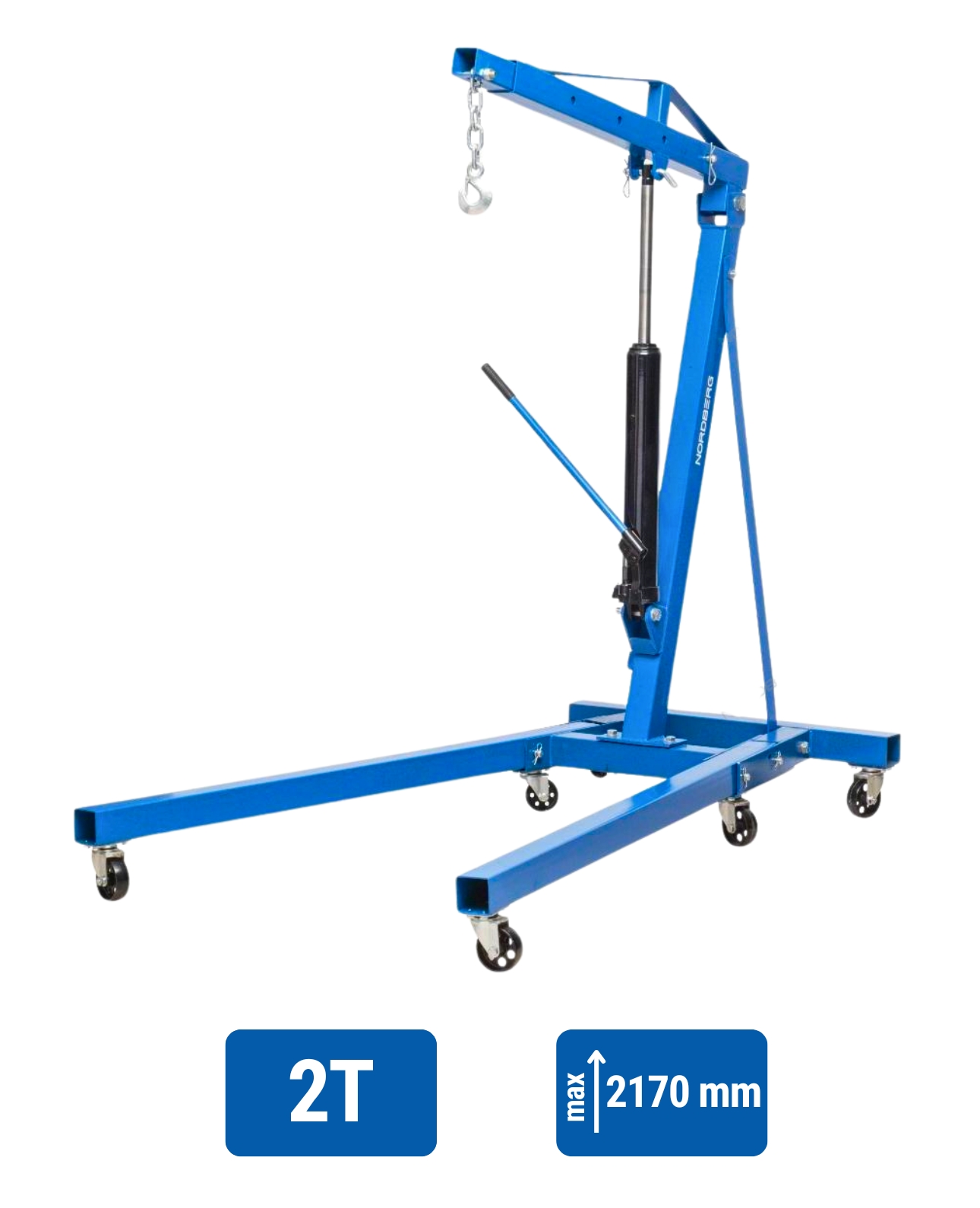

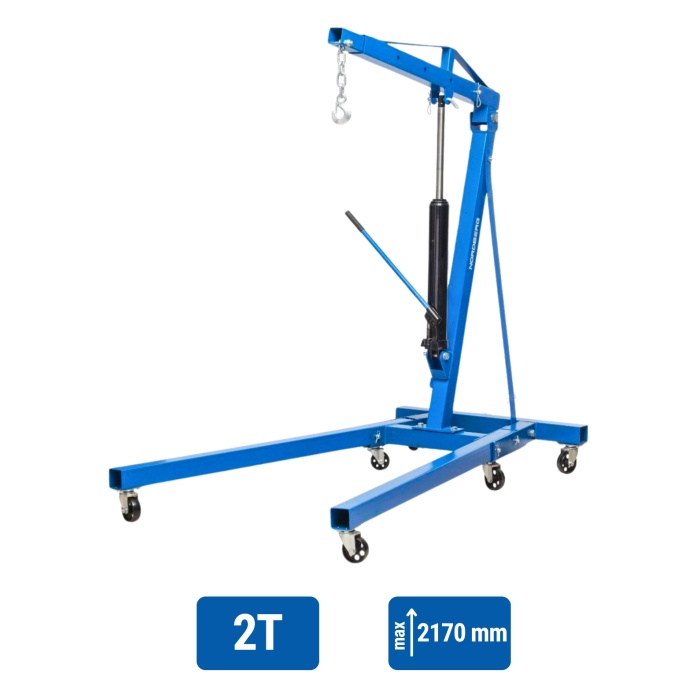

2 ton Engine Crane Dual Piston NORDBERG N3720

AED 1,100

54 in stock

Specification

Weight 86 kg
Dimensions 1780 × 1020 × 2500 mm
Brand

Capacity

2 ton

Base height (A), mm

185

Load capacity in boom position 4 (P4), kg

500

Wheel spacing (E), mm

685

Lifting capacity in boom position 1 (P1), kg

2000

Lifting capacity in boom position 2 (P2), kg

1500 kg

Lifting capacity in boom position 3 (P3), kg

1000

Max. lifting height, in boom position 1 (H1), mm

1810

Max. lifting height, in boom position 4 (H2), mm

2170

Boom length in position 1 (L1), mm

1045

Boom length in position 2 (L2), mm

1225

Boom length in position 3 (L3), mm

1415

Boom length in position 4 (L4), mm

1600

Base length (B), mm

1760

Max. base width (D), mm

1005

Height of crane (C), mm

1395

Package size

3 Boxes: 880x560x90mm 27,6 kg; 1290x300x190mm 37,6 kg; 1530x200x90mm 23,1 kg

Description

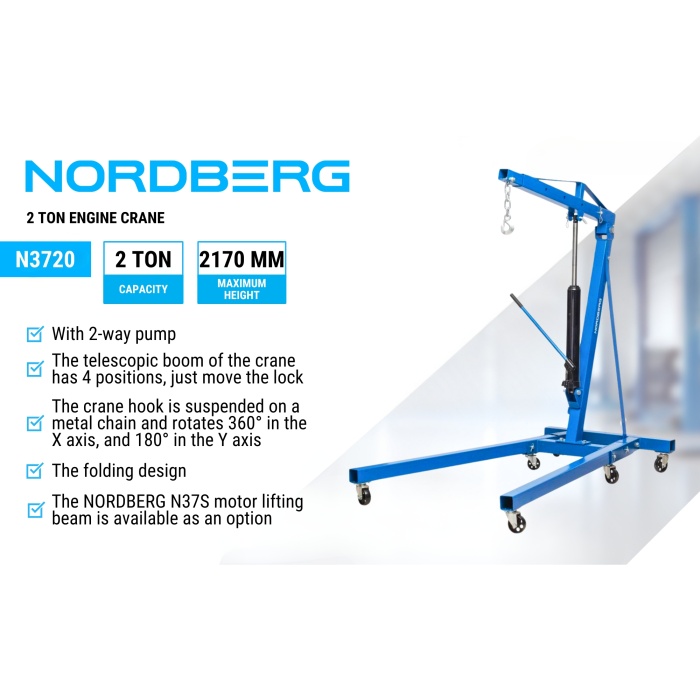

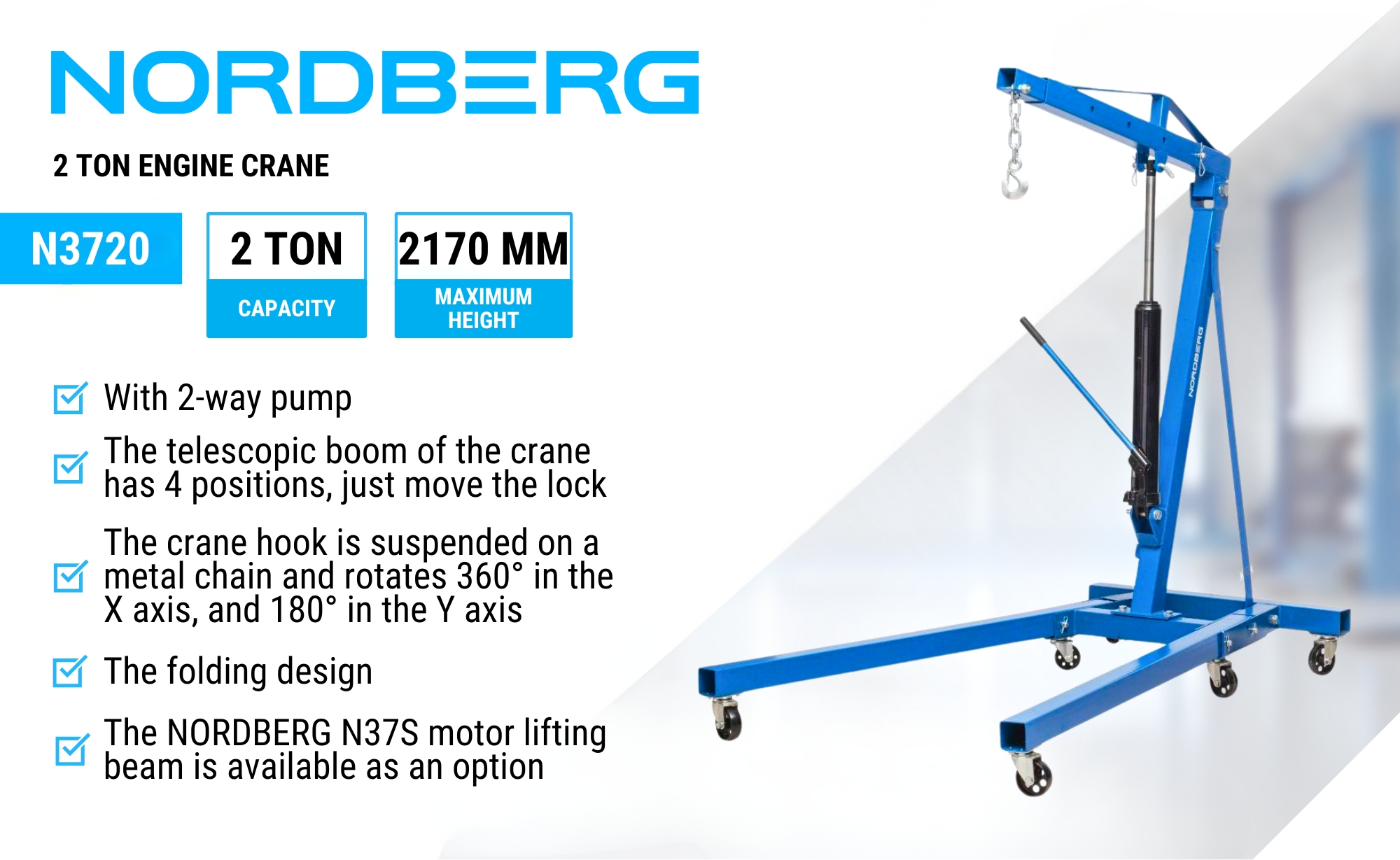

2 ton Engine Crane Dual Piston NORDBERG N3720

Nordberg N3720 hydraulic crane for hanging the engine, lifting and lowering vehicle units. The body of Nordberg cranes is made of heavy gauge steel and designed with ergonomic requirements in mind.

  • With 2-way pump

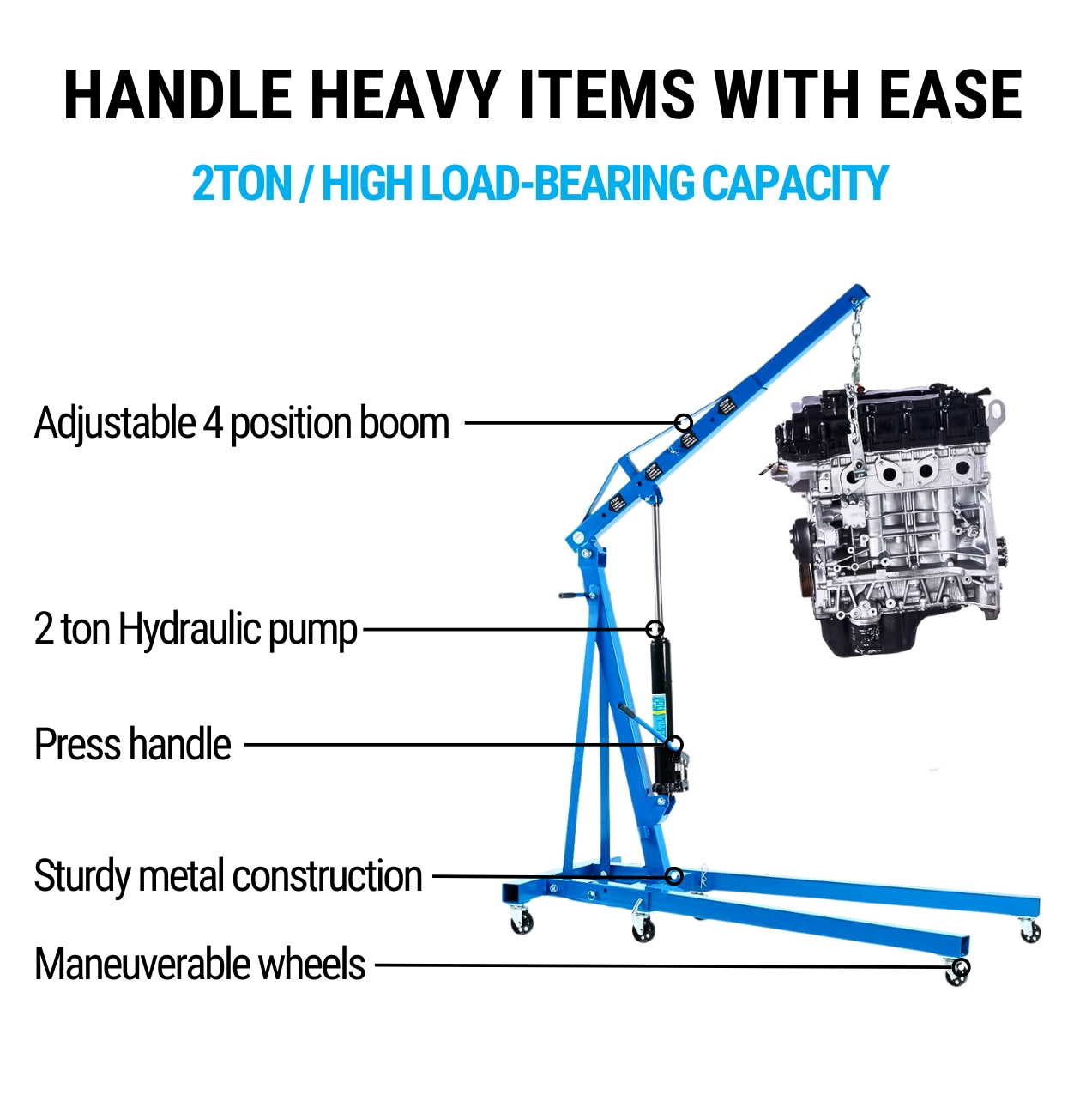

  • The telescopic boom of the crane has 4 positions, just move the lock.

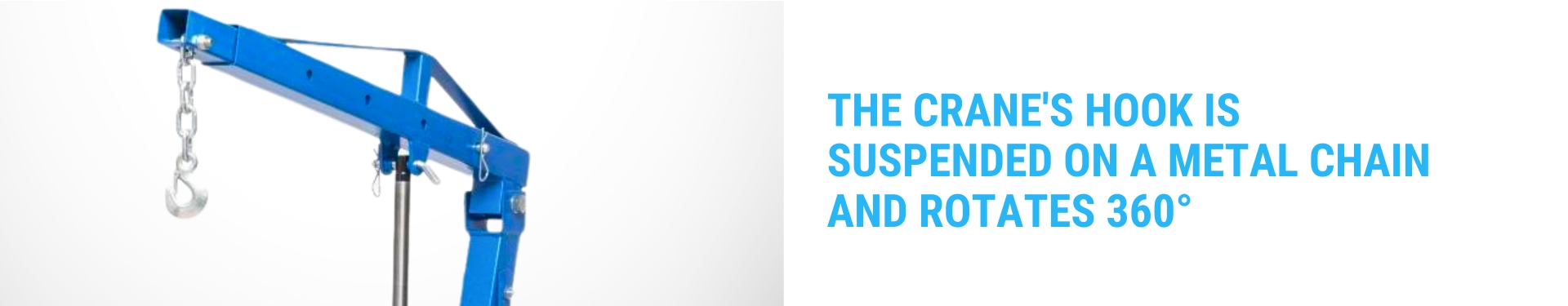

  • The crane hook is suspended on a metal chain and rotates 360° in the X axis, and 180° in the Y axis.
  • The height of the base is 170 mm

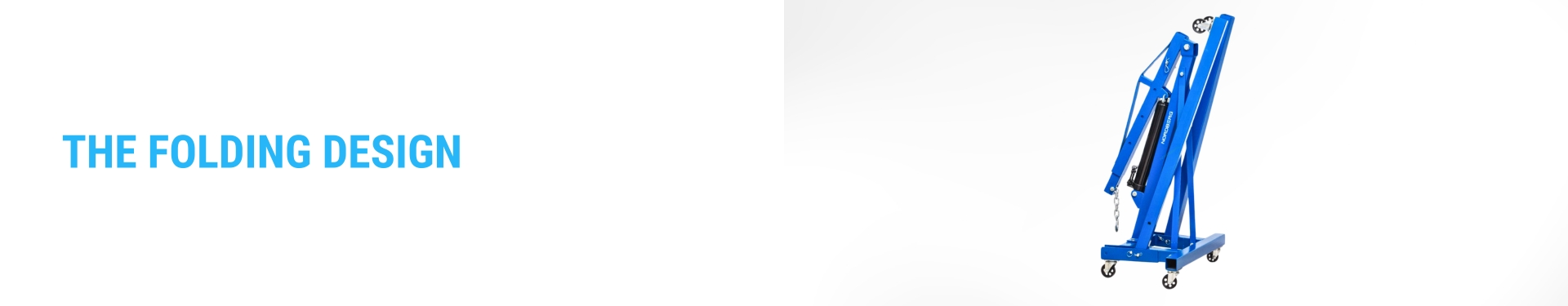

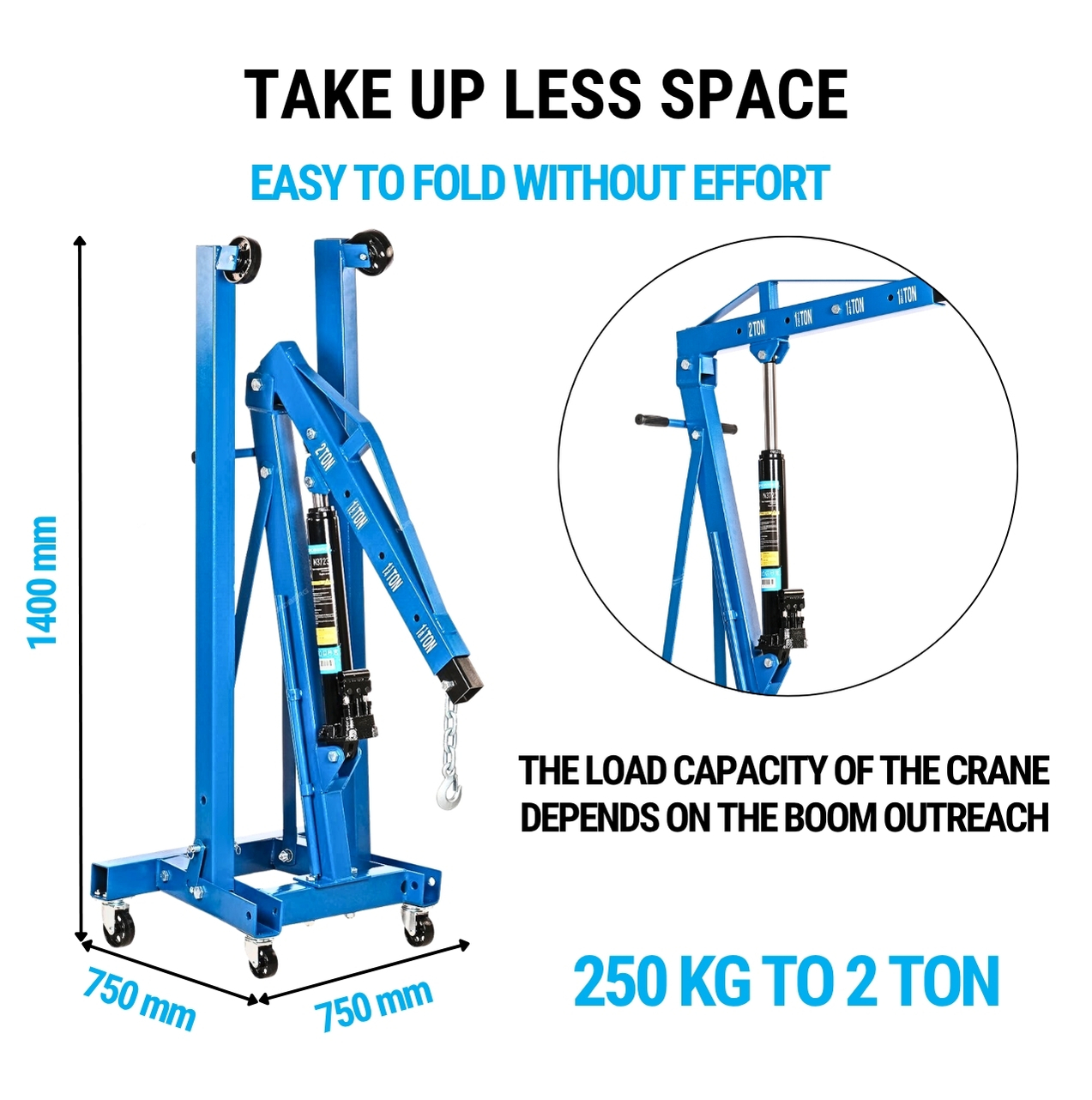

  • The folding models take up almost no storage space when folded and are easy to maneuver.

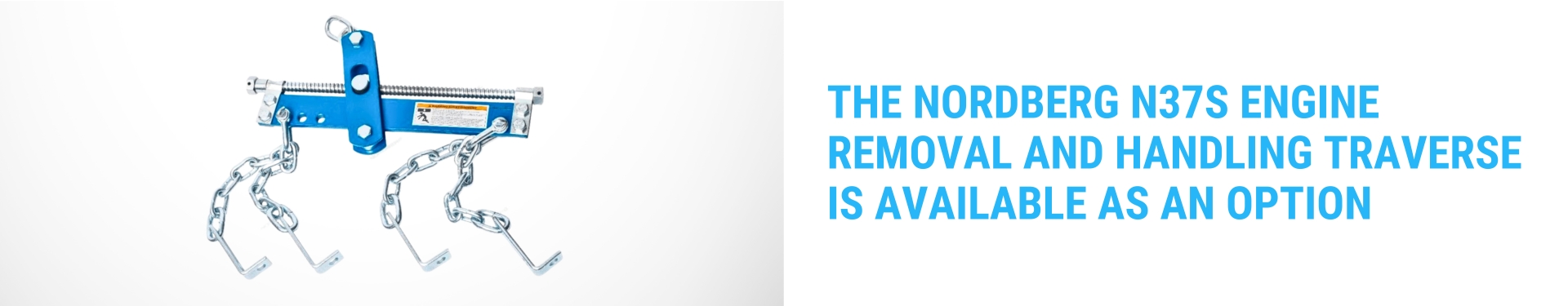

  • The NORDBERG N37S motor lifting beam is available as an option.

Optional NORDBERG N37S traverse for removal and relocation of motors

Original price was: AED 1,100.Current price is: AED 1,045.
AED 145
Original price was: AED 1,245.Current price is: AED 1,190.
For 2 items
AED 1,100
AED 145
Original price was: AED 85.Current price is: AED 80.
Original price was: AED 1,330.Current price is: AED 1,325.
For 3 items
