Functional

• Designed for safe and controlled compression of McPherson shock absorber strut springs during disassembly, assembly and component replacement. Optimizes workflow, reducing the risk of injury and component damage.

Advantages

• Maximum compression force of up to 1 t ensures that springs of various sizes can be securely clamped
• 325 mm stroke allows working with different shock absorber struts
• Suitable for spring lengths up to 355 mm and diameters from 100 to 250 mm

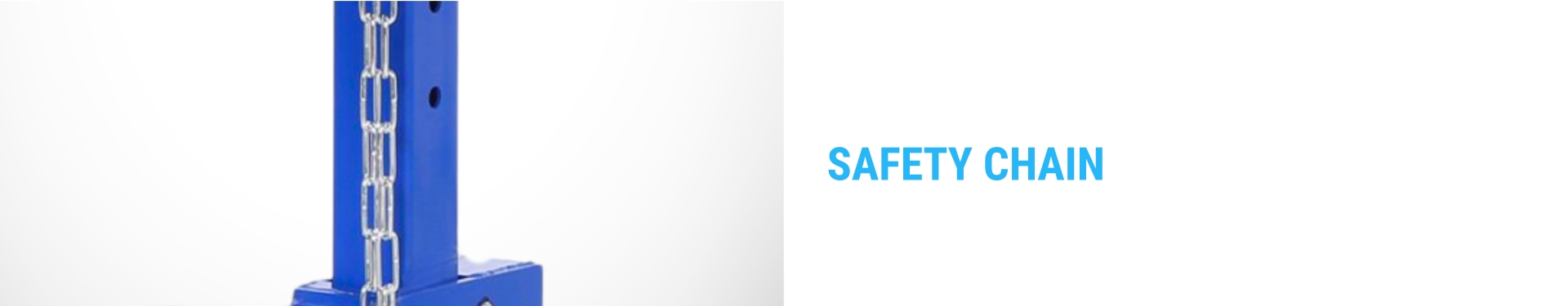

• The safety chain prevents the spring from flying out during operation, ensuring safe operation

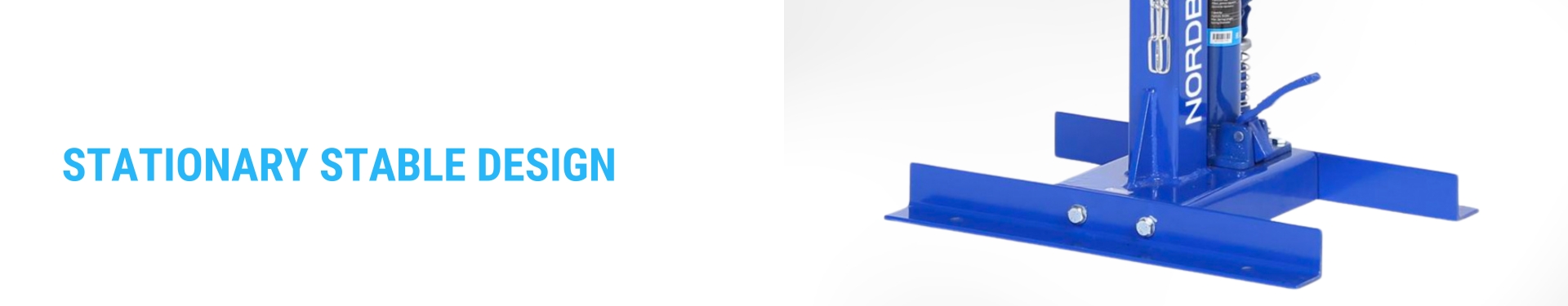

• Stationary stand with secure floor anchoring provides stability

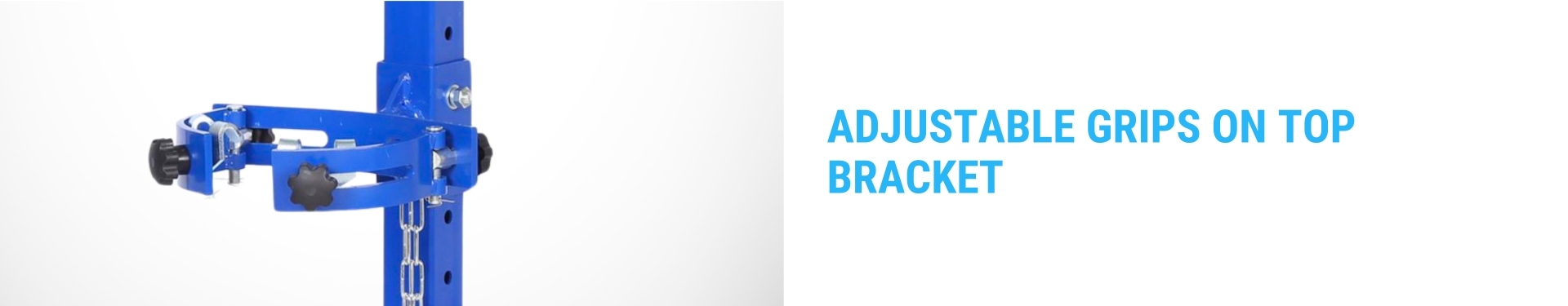

• Top bracket with adjustable grips prevents the spring from shifting

Ease of use

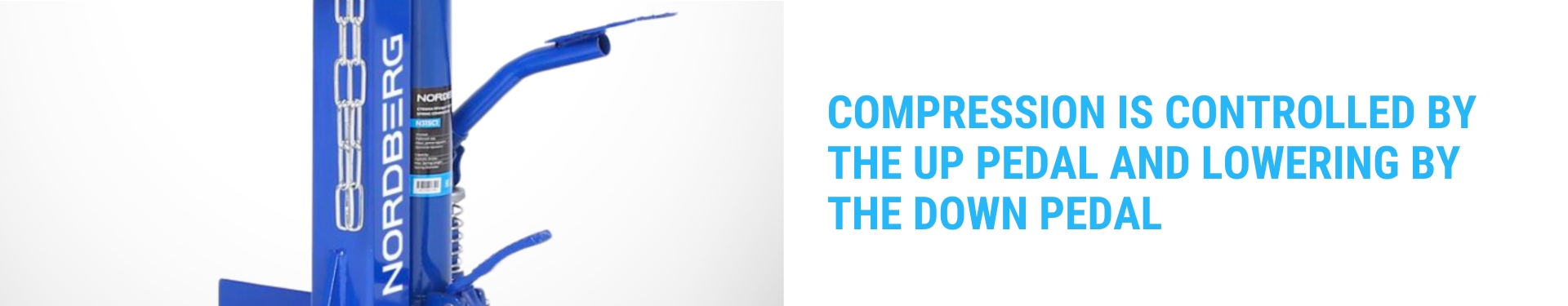

• Easy to use: compression is controlled by the lift pedal and lowering by the release pedal
• Adjustable grips allow the coupler to be adapted to different spring sizes
• Safe hold prevents the risk of spring ejection during operation
• Compact dimensions – 500 × 484 × 1190 mm – save space in the workshop

Contents

• Spring compressor – 1 pc
• Top bracket – 1 pc
• Hydraulic cylinder – 1 pc
• Movable support bracket – 1 pc
• Spring clamps – 2 pcs
• Fixing bolts – set
• Operating instructions – 1 pc

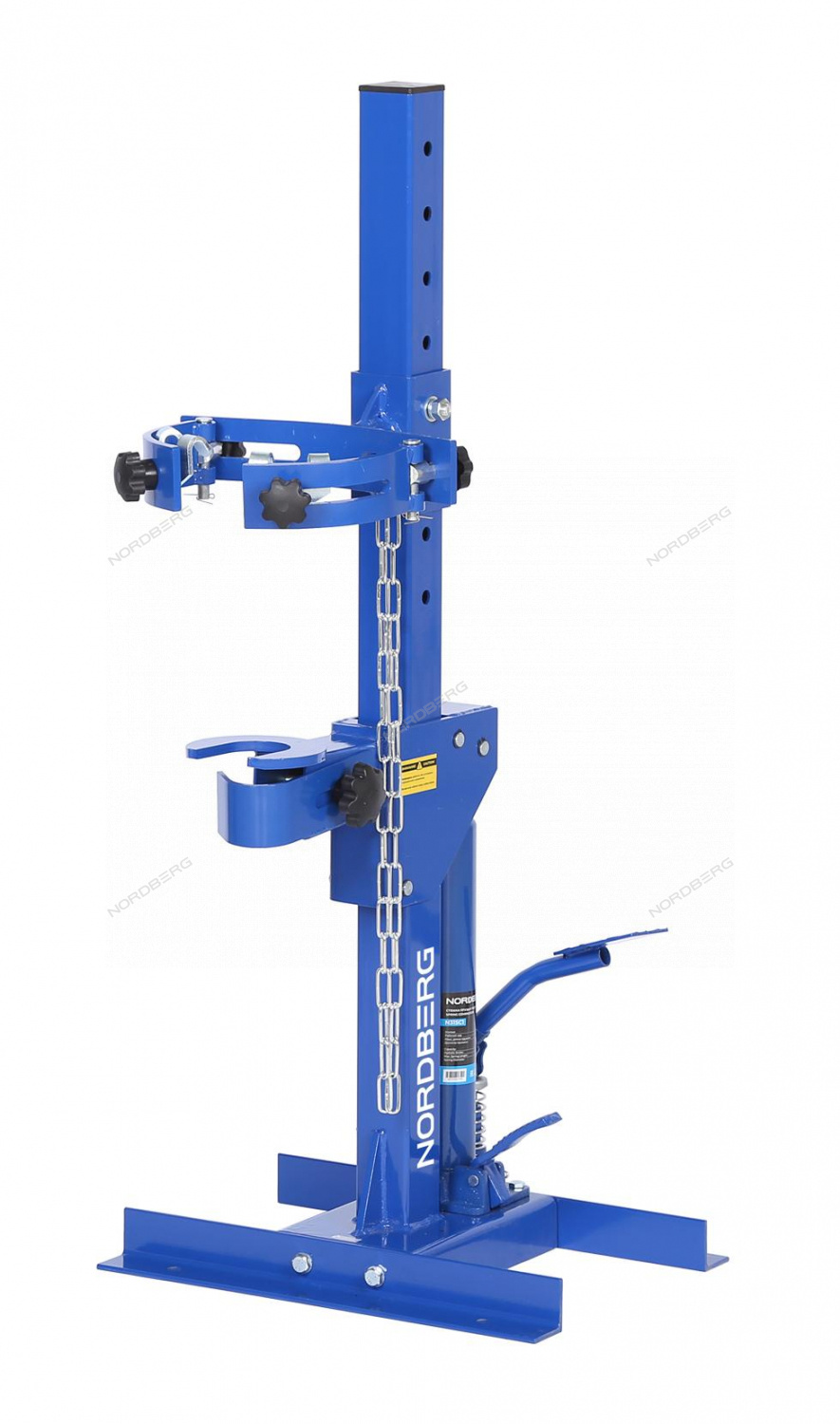

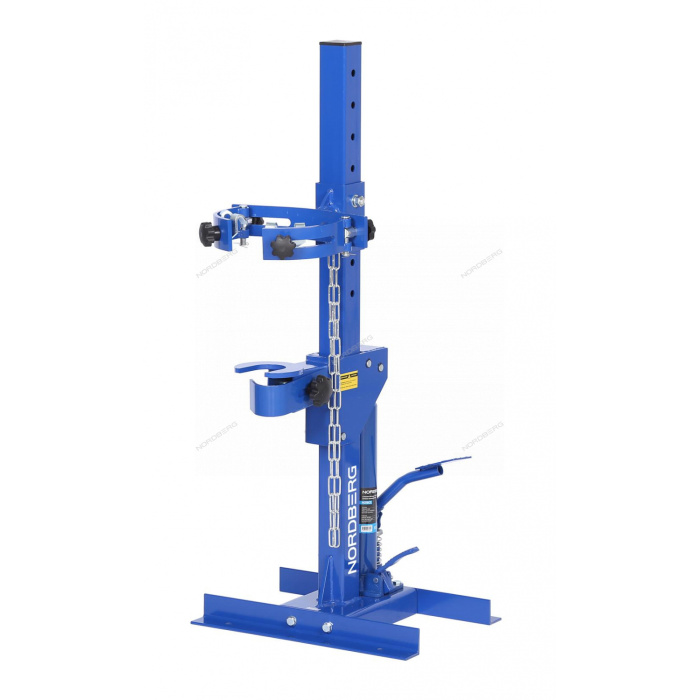

The NORDBERG N31SC1 is a safe and reliable solution for working with shock absorber struts.
