Wheel alignment machine 3D NORDBERG C803
Wheel alignment machine 3D NORDBERG C803 – fast, simple and reliable 3D wheel alignment stand on OS: WINDOWS.
- Suitable for installation on a lift and a pit.
- Installation is possible even in small workshops (there are no restrictions on the distance between the lift and front wall)
- Database – more than 40,000 vehicles. Free lifetime database update
- Monitor, computer and printer in one unit with the column, securely fixed, less likely to damage, unlike camber models on a trolley
- Computer base and software will allow manual data correction
- 5MP camera and automatic light adjustment allows measurement with an accuracy of 0.01°
- Four 4-point wheel adapters 12…24″
- Control of most functions with just 2 buttons.
- Easy access in the program to all measured parameters
- Measurement of the maximum steering angle of the wheels without electronic turntables.
- Graphic display on the monitor of the measured values.
- It is possible to work with vehicles that require entry of ride height.
- Performing the procedure for compensating for the beating of disks by the rolling method (with the possibility of skipping if necessary).
- Pre-calibrated cameras at the factory for easy installation setup
- You can save the results of adjustments and customer information
- Kit for attaching wheel adapters and targets to a storage column
![](https://i9y6k2d5.rocketcdn.me/wp-content/uploads/2023/04/NORDBERG-C803-1-1.png)
Packaging:

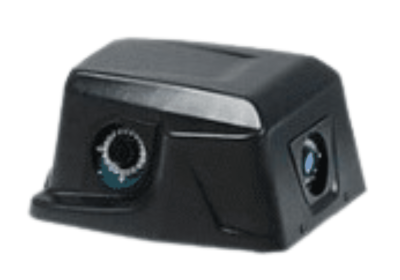

- Reliable 3D cameras, automatically adjust to the light level.
- Clamps from 12” to 24” (with adapter) with impact resistant targets, without electronics.
- Database. Constantly updated software + database update by the user. The program has a user-friendly interface, information prompts in operation, control of most functions with just 2 buttons, a rolling compensation procedure.
- Turntables – 2 pcs. with stands to perform compensation with rolling.
- Steering wheel lock
- Brake pedal lock
- Supporting bracket for attaching targets to the column
- Computer (PC), Monitor, printer, keyboard and mouse
- Radio remote control
- Instruction manual
![](https://i9y6k2d5.rocketcdn.me/wp-content/uploads/2023/04/NORDBERG-C803-2-1-e1706082984930.jpg)
![Дизайн без названия (12) Дизайн без названия (12)](https://i9y6k2d5.rocketcdn.me/wp-content/uploads/elementor/thumbs/-без-названия-12-qiruhtjp0wxy6t4hbrh8hi5bc99u92w05jryxpm7zk.png)
Parameter | Measurement Range | Maximum error in measurement | Average error in measurement | |
Front Wheel Alignment | ||||
Camber | +/-8º | +/-3′ | +/-2′ | |
Front Total Toe | +/-5º | +/-3′ | +/-2′ | |
Caster | +/-19º | +/-8′ | +/-5′ | |
SAI/KPI | +/-19º | +/-8′ | +/-5′ | |
Lock Angle | +/-45º | +/-10′ | +/-5′ | |
Rear Wheel Alignment | ||||
Camber | +/-8º | +/-3′ | +/-2′ | |
Rear Total Toe | +/-5º | +/-3′ | +/-2′ | |
Rear Individual Toe | +/-2,5º | +/-3′ | +/-2′ | |
Symmetry Angles | ||||
Front Set Back | +/-2,5º | +/-3′ | +/-2′ | |
Rear Set Back | +/-2,5º | +/-3′ | +/-2′ | |
Thrust Angle | +/-2,5º | +/-3′ | +/-2′ | |
Geometrical Driving Axis | +/-2,5º | +/-3′ | +/-2′ |
