4.5 TON, 3-SECTIONS ARM, ELECTRIC LOCK FROM ONE COLUMN, 380V, TWO POST LIFT NORDBERG N4125H-4,5G

AED 13,460 incl.VAT

Weight 965 kg
Capacity

4.5 ton

Lock

One column manual lock

Models

Clear floor

Width Overall

3950 mm

Column Inside

3050-3200 mm

Minimum height

2060 mm

Lifting Time

50 sec

Arm type

3-sections

Motor power

3 KW

Minimum arm height

110 mm

Lifting height to the limiter

3870 mm

Total lifting height, cm (adjustable. optional)

4050/4650/5240 mm

Length of arms

910-1750 mm

Stopper operating height (from floor to arm)

500 mm

Minimum length of front tackle

910 mm

Maximum length of the front arms

1750 mm

Minimum length of the rear catches

910 mm

Maximum length of the rear tackle

1750 mm

Warranty

1 year Service Warranty

10 in stock

Description

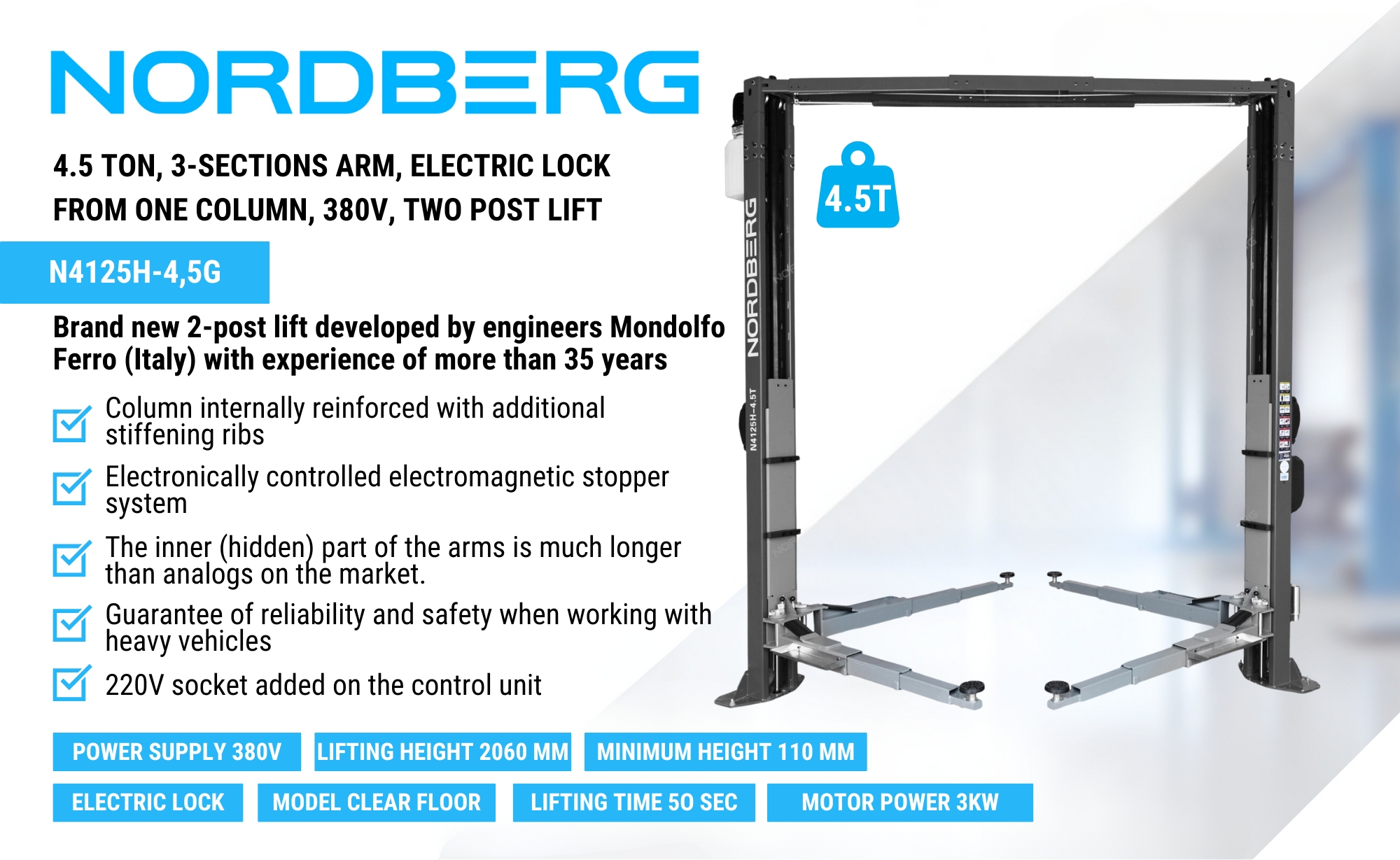

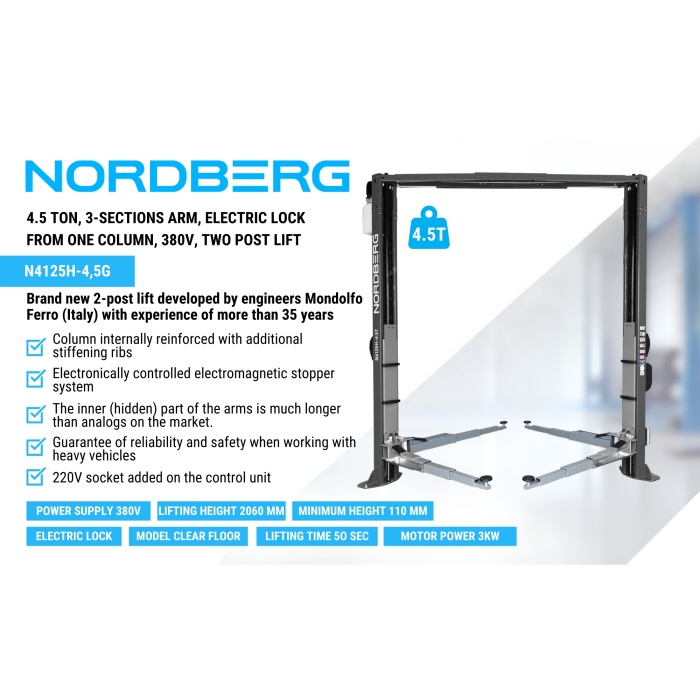

4.5 TON, 3-SECTIONS ARM, ELECTRIC LOCK FROM ONE COLUMN, 380V, TWO POST LIFT NORDBERG N4125H-4,5G

NORDBERG N4125H-4,5T (gray) NORDBERG N4125H-4,5T 2-post lift machine with upper synchronization g / n 4,5t 380V (gray)

Brand new 2-post lift developed by engineers Mondolfo Ferro (Italy) with experience of more than 35 years.

Total 2-post lift height 4050mm (optional 4650mm or 5250mm)

  • Latest engineering developments, namely:
  • Column internally reinforced with additional stiffening ribs
  • Possibility of height increase thanks to modular optional extensions 600mm and 1200mm
  • Modular reinforced connecting beam – facilitates installation and increases column stability.
  • The inner (hidden) part of the clamps is much longer than analogs on the market. Guarantee of reliability and safety when working with heavy vehicles
  • 3-section thick-walled clamps. Longer design. Minimum: 900 mm, Maximum: 1750 mm.
  • Control of the elevator from the control panel
  • Bumping rubbers are also installed on the grip planes. To prevent damage to the vehicle sills.
  • Control by remote control. Electric solenoid actuator of the stoppers
  • Critical components – Italy
  • Passed real European certification, static and dynamic tests.
  • The 2-post lift is manufactured on Italian robotic machines.
  • The structure is made with 150% safety margin
  • Curtain in the column to protect cables, chains and cylinders
  • Unified spare parts for all elevators of this type both with upper synchronization and with lower synchronization.
  • Complete set of spacers: 4 pcs. – 80 and 4 pcs. – 180 mm
